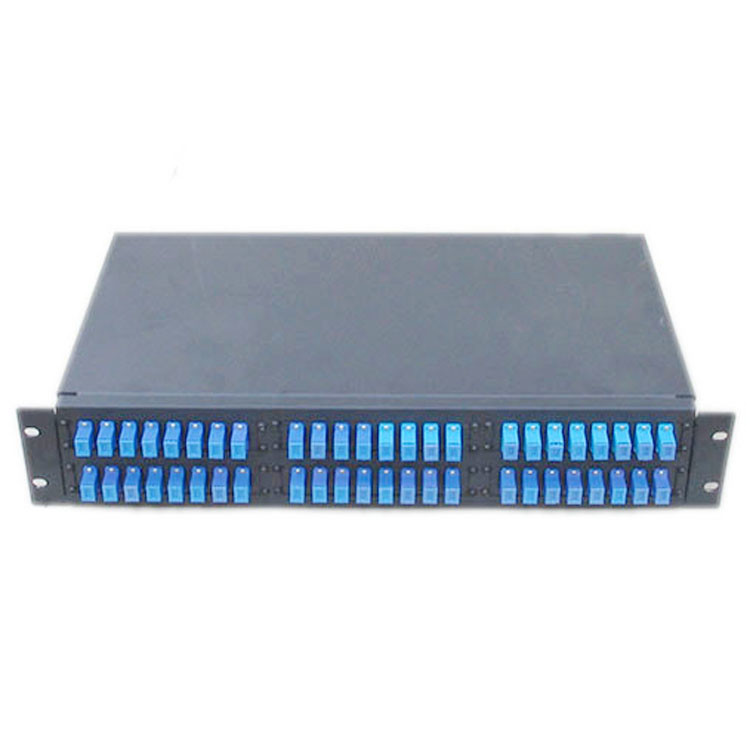

12-192core Slide drawer type 19'' standard structure Rack-mount
Patch Panel With FC SC LC ST adaptor
Application:
The product can be used on the terminal of the optical cables,
different types and structures, the
diameter of which are within 18mm() tray.
Structural features:
- All property indexes are in accordance with National YD/T925—1997
Standard.
- The body make use of cold rolling steel sheet Strong adhesive
force, artistic and durable.
- Distinctive design of 1-2 cable entrance and fiber exit of 1-24
cores assures flexibility.
- Cable entrance are sealed with oil resistance NBR to increase the
flexibility. Users can choose to prick the
- entrance and exit.
- Overlapping fiber-melting tray and separate insulation earth unit
make the disposition of the cores,
- expanding the capacity and cable-earthen flexible, convenient and
safe.
Main technical Specifications:
External Size: (length×width×height) 430x250x1U
Weight:3.5kg
optical fiber winding radius: ≥40mm
extra loss of fiber tray:none
fiber length left in tray:≥1.6m
fiber capacity: 48 cores
working temperature: - 400C ~ + 600C
lateral pressure-resistance: 500N
shock-resistance:750N
IV,Operations
Peel the cable , take off the outer and inner housing, as well as
loose contract tube, and wash off the
filling grease, leaving 1.1～1.6m fiber and 20～40mm steel core.
Fix the cable-pressing card and the cable, as well as the cable
reinforce steel core.
Lead the fiber into the melting and connecting tray, fix heat
contract tube and melted tube to one of the
connecting fiber. After melting and connecting the fiber, move heat
contract tube and melted tube and
fix the stainless (or quartz) reinforce core stick ,make sure the
connecting point is in the middle of the
housing pipe. Heat the pipe to make the two into one.Put the
protected joint into the fiber-laying
tray.(one tray can lay 12 cores)
Lay the left fiber in the melting and connecting tray evenly, and
fix the winding fiber with nylon ties. Use
the trays from the bottom up. After all the fiber has been
connected, cover the top layer and fix it.
Position it and use the earth wire in accordance with the project
plan.
Packing List
terminal case main body: 1 piece polishing sand cloth: 1 pcs
melting and connecting mark: 1 pcs
heat shrinkable sleeve: 2～24 pcs
tie: 4～24 pcs
Specification:
| Type | GPZ/JJ-CLA |
| Dimension(mm) | 430*250*1U/2U/3U/4U |
| Suitable adapter | FC/LC/SC/ST,APC/UPC/PC |
| Fiber Capacity(cores) | 12,24,48,,96(panel plate can be changed) |
| Material | Cold-roll steel sheet |
Order information:
| Type | Dimension(mm) | Max capacity(cores) | Remark |
| GPZ/JJ-CLASC12 | 430*250*1U | 12 | Cold rolled steel sheet,with electrostatic spraying,suitable for
FC,SC,ST,LC adapters. |
| GPZ/JJ-CLAFC24 | 24 |
| GPZ/JJ-CLA2SC24 | 48 |
| GPZ/JJ-CLAFC48 | 430*250*2U | 48 |
Packing information:
| Type | Inner carton size (mm) | Weight (kg) | Packing size (mm) | Weight (kg) | No./ carton |
| GPZ/JJ-CLASC12 | 465*330*75 | 5.5 kg | 485*420*350 | 29.0 kg | 5 |
| GPZ/JJ-CLAFC24 |
| GPZ/JJ-CLA2SC24 |
| GPZ/JJ-CLAFC24 | 475*335*130 | 6.2kg | 500*355*550 | 26.3kg | 4 |
