    Ceramic Ferrule Singlemode APC Fiber Optic Receptacle

    Ask Lasest Price
    Brand Name : CY COM
    Model Number : SC / UPC
    Certification : ISO9001:2015 ,ISO14001:2015,ROSH,SGS
    Price : USD 0.12-0.24 / PCS
    Payment Terms : T/T, Western Union
    Supply Ability : 5 MIllion PCS / Month
    Delivery Time : 3-7 days
    • Product Details
    • Company Profile

    Ceramic Ferrule Singlemode APC Fiber Optic Receptacle

    Ceramic Ferrule Singlemode APC Fiber Optic Receptacle


    SC / UPC Fiber Optic Adapter, optical fiber coupler ,Singlemode Simplex with Flage and Metal clip


    Description:

    An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.Fiber optic adapter is used for the connection and coupling between fiber active connectors.Choose proper type according to the splice of optical fiber active connector. Good agglomerati‐on technic to ensure the best quality, high intensity and stability.


    SC mode used pluggable tight locking structure


    Features:

    FC mode used matal thread connecting strructure
    Low insertion loss, high return loss
    Good compatibility
    High precision of mechanical dimensions
    High reliability & stability
    Ceramic or Bronze Sleeve

    APC,UPC optional
    Simplex / Duplex


    Application:

    Fiber optic communication network

    Optical broadband process network

    Optical instrumentation network

    Telecommunication Networks

    Optic Local Area Network

    Adapter docking

    Equipment Test
    CATV System


    Specification:

    ProjectValues
    Reference standardIEC61754-4,IEC61300-3-33
    YD/T 1272.3-2005
    Insertion loss≤0.3dB
    IL Change absolute
    value
    Low temperatureTemperature:-40℃
    Duration:168h
    Temperature Change rate:1℃/min
    ≤0.2dB
    Hot and humidTemperature:-40℃
    Humidity:90%~95%
    Duration:168h
    Temperature Change rate:1℃/min
    ≤0.2dB
    VibrationVibration direction:X,Y,Z
    Vibration time:2hours/direction
    Vibration amplitude:0.75mm
    Vibration frequency:10`55Hz
    ≤0.2dB
    DropImpact height:1m
    Optical cable length:2.25m
    Impact times:5
    ≤0.2dB
    Temperature cycleTemperature:-40℃to+85℃
    Ultimate temperature duration:0.5h
    Temperature Change rate:1℃/min
    Cycle times:21
    ≤0.2dB
    RepeatabilityInsertion pell times:10≤0.2dB
    Mechanical durability
    (500cycles)
    Insertion pell times:500≤0.2dB
    Tensile strength of
    coupling mechanism
    68.6N/10 minute≤0.2dB
    Flame resistanceUL94-V0
    Pull-out force≤19.6N
    work temperature-25℃~75℃
    storage temperature-40℃~80℃

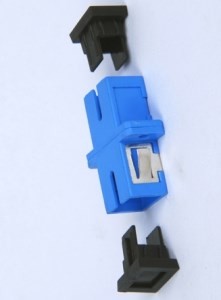

    Structure:

    ① Flange

    ② Flange welded components

    ③ Dust caps

    ④ sleeve

    ⑤ Inter spindle

    ⑥ Decorative button


    Ceramic Ferrule Singlemode APC Fiber Optic Receptacle


    Pictures and Drawing:

    Ceramic Ferrule Singlemode APC Fiber Optic Receptacle


    Ceramic Ferrule Singlemode APC Fiber Optic ReceptacleCeramic Ferrule Singlemode APC Fiber Optic Receptacle
